Brief Technical Specifications

> Common ambient air temperature for continuous duty with R 134a coolant is + 60°C, can be increased up to 90°C with other coolants.
> Evaporating Temperature: 15°C;
>Condensing Temperature: 70°C;
>Indoor temperature adjustment range 24 to 30°C (±2 °C);
> Cooling Capacity: 4.0 kW to 8 kW;
> Coolant Charge: 6 liters approx.;
> Designed for highly corrosive and dusty environment;
> Designed for use in mobile equipment with high vibration;
> Power Supply: 415 V, 50 Hz, 3 phase, Control circuit: 230 or 110 V, 50 Hz, 1 phase.
> Heat Exchanger: Copper (optionally, Aluminum) Fin – Copper Tube for Condenser & Evaporator. Electrolytic tin coating (optionally, CED or special epoxy coating)
> Fin spacing 3.2 mm for Condenser and 2.7 mm for Evaporator.
> Fans: Condenser – Axial Fan, Evaporator – Centrifugal Fan (Blower), Protection degree - IP 54.
> Thermostatic Expansion Valve: Danfoss make.

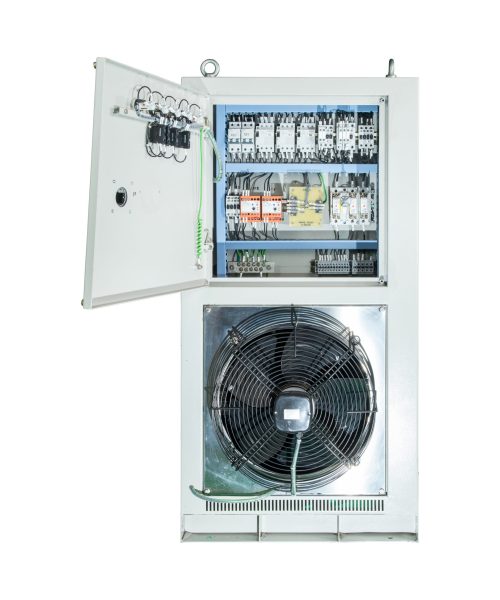

> Control Panel is made with Siemens or ABB components having MPCB provision for every Motor.
> Body – AC body frame is strong and rigid, made of profile bent steel sheets, designed for extreme shock-loads, body walls are also made of MS sheets of 1.5mm. (If required the body can be fabricated with stainless steel grade 304). Entire body of air conditioning unit is weather resistant and protected against water seepage. AC unit is coated with special paint, appropriate for use in aggressive and corrosion prone ambient condition and resistant acids and alkalis.
