Brief Technical Specifications

> Common ambient air temperature for continuous duty with R 134a coolant is + 60°C (with R236fa coolant up to + 90°C.) > Evaporating Temperature: 15°C;
> Condensing Temperature: 70°C;
> Indoor temperature adjustment range: 24 to 34°C (±2 °C);
> Cooling Capacity: 6.0 kW to 12 kW;
> Coolant Charge: 6 to 9 liters;
> Designed for highly corrosive and dusty environment;
> Designed for use in mobile equipment with high vibration; to used in Operator's Cabins as well as Electric Rooms
>Power Supply: 415 V, 50 Hz, 3 phase, Control circuit: 230 or 110 V, 50 Hz, 1 phase.
> Heat Exchanger: Copper (optionally Aluminum) Fins – Copper Tube for Condenser & Evaporator with electrolytic tin coating (optionally CED or special epoxy) to withstand corrosive fumes and prevent dust clogging.
Fin spacing 3.2 mm for Condenser and 2.7 mm for Evaporator. .
> Fans: Condenser – Axial Fan,; Evaporator – Centrifugal Fan (Blower), Protection degree - IP 54. Fan blades and Blower runners can be made of Stainless Steel;
> Thermostatic Expansion Valve: Danfoss make.
> Hook-up kit: Flexible Hoses of Parker or equivalent make of specifically coolant application, fittings are of stainless steel;
>Control Panel is made with Siemens or ABB components having MPCB provision for every Motor;
> Condensate Evaporator (Optional) – 306 Stainless steel, 3 kW Heater,s 3 Nos. 20 l tank capacity.
>Body – AC body frame is strong and rigid, made of profile bent stainless or MS steel sheets, designed for extreme shock-loads. Entire body of air conditioning unit is weather resistant and protected against water seepage. AC unit is coated with special paint, appropriate for use in aggressive and corrosion prone ambient condition and resistant acids and alkalis.
> Compressor: Semi-Hermetic, Bitzer or Bock (optionally Scroll, Copeland make).
> Compressor Oil Charge: 1.5 Liters;

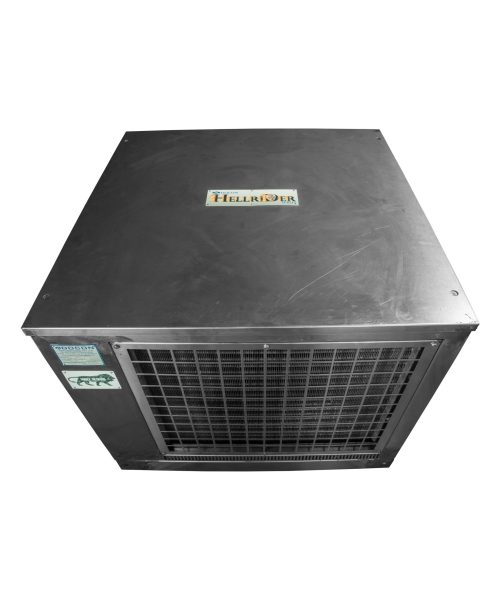

> Dimensions – Condenser: height: 700 mm; width 835 mm; depth 835 mm. Dimensions can be altered to fit precisely into the available space;
> Evaporator: ceiling, wall or floor mounted, different designs are available, can be tailor made;
> Weight – Condenser: 220 kg, Evaporator 70 kg approx.
